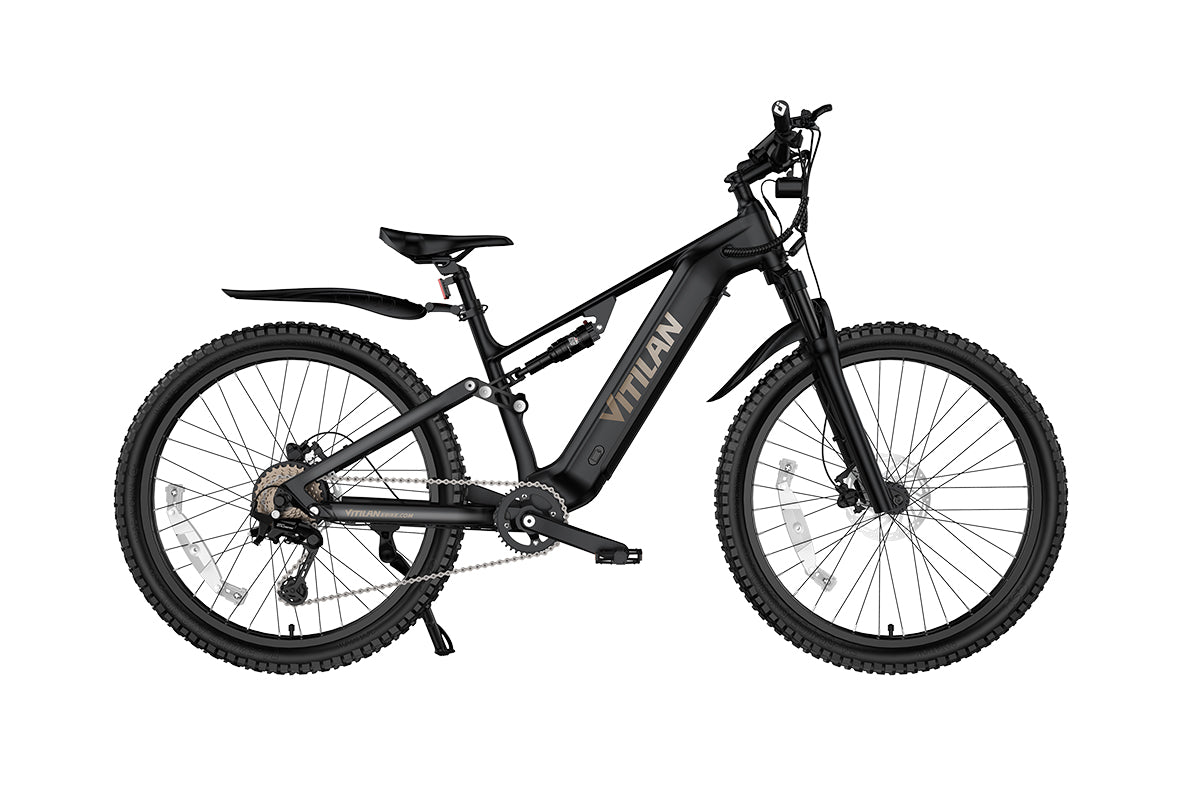

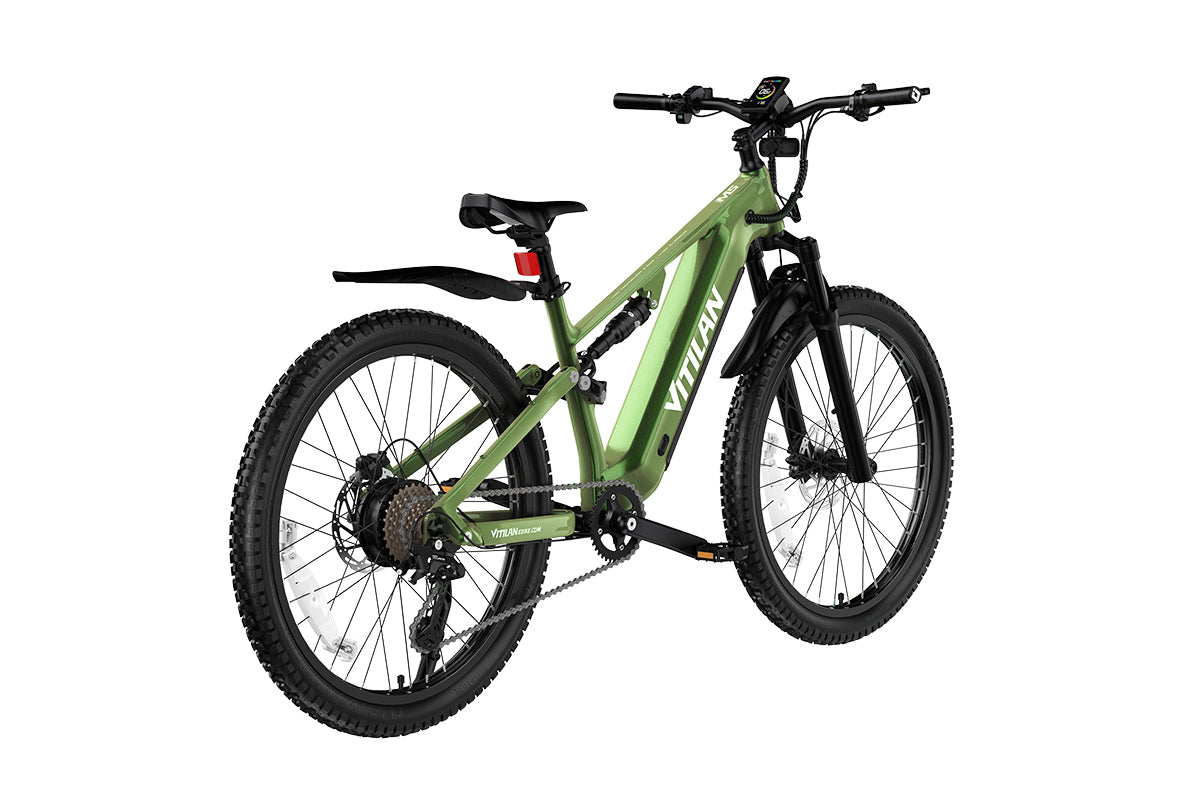

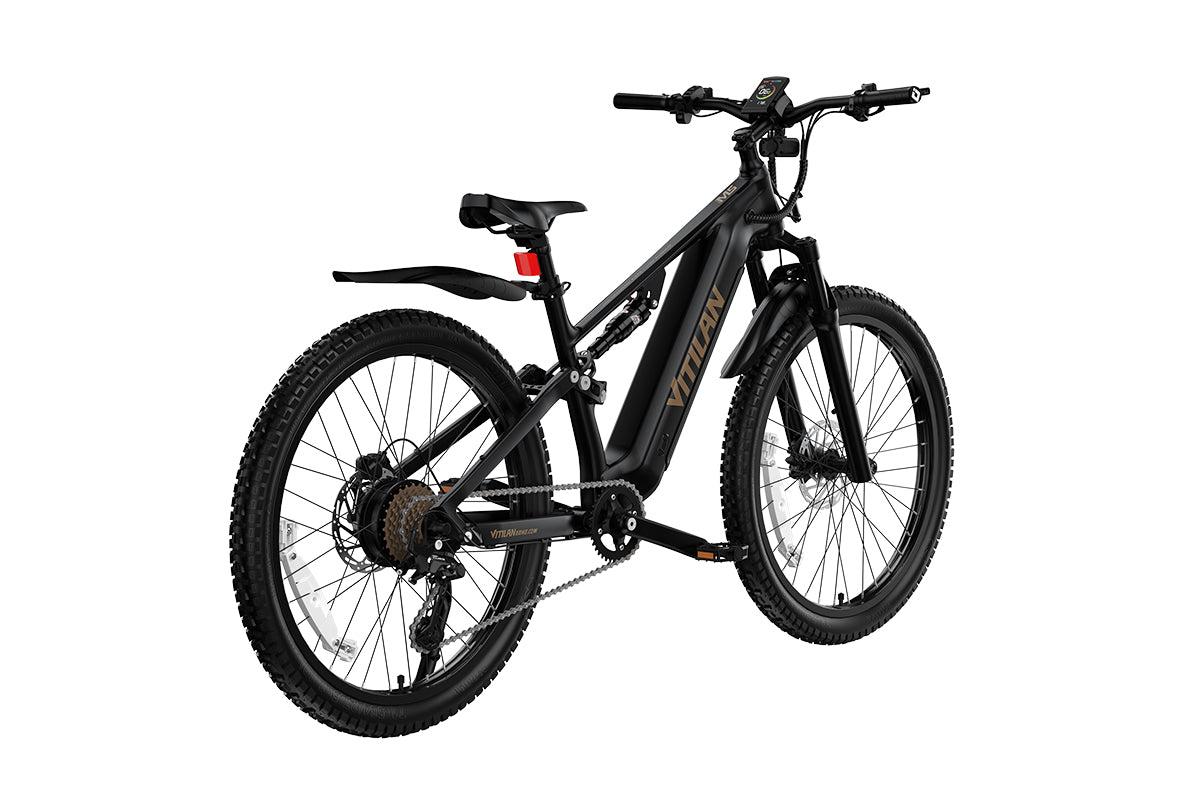

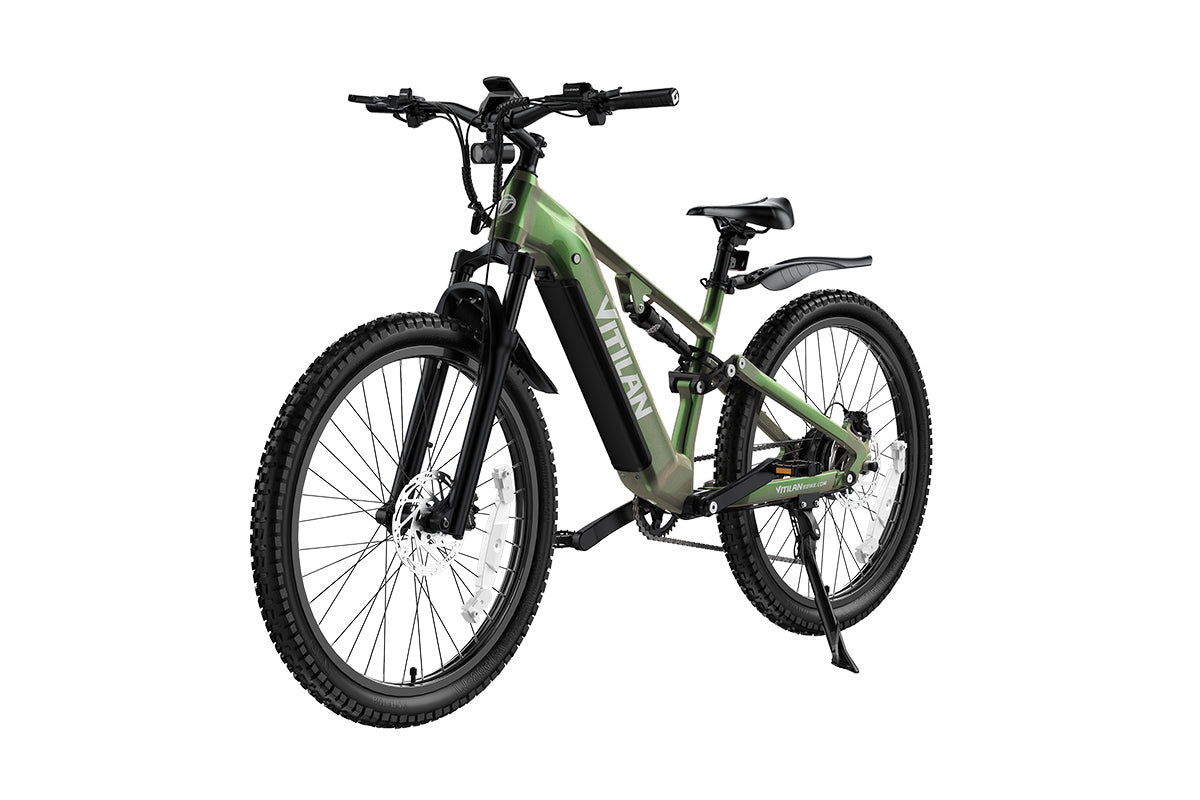

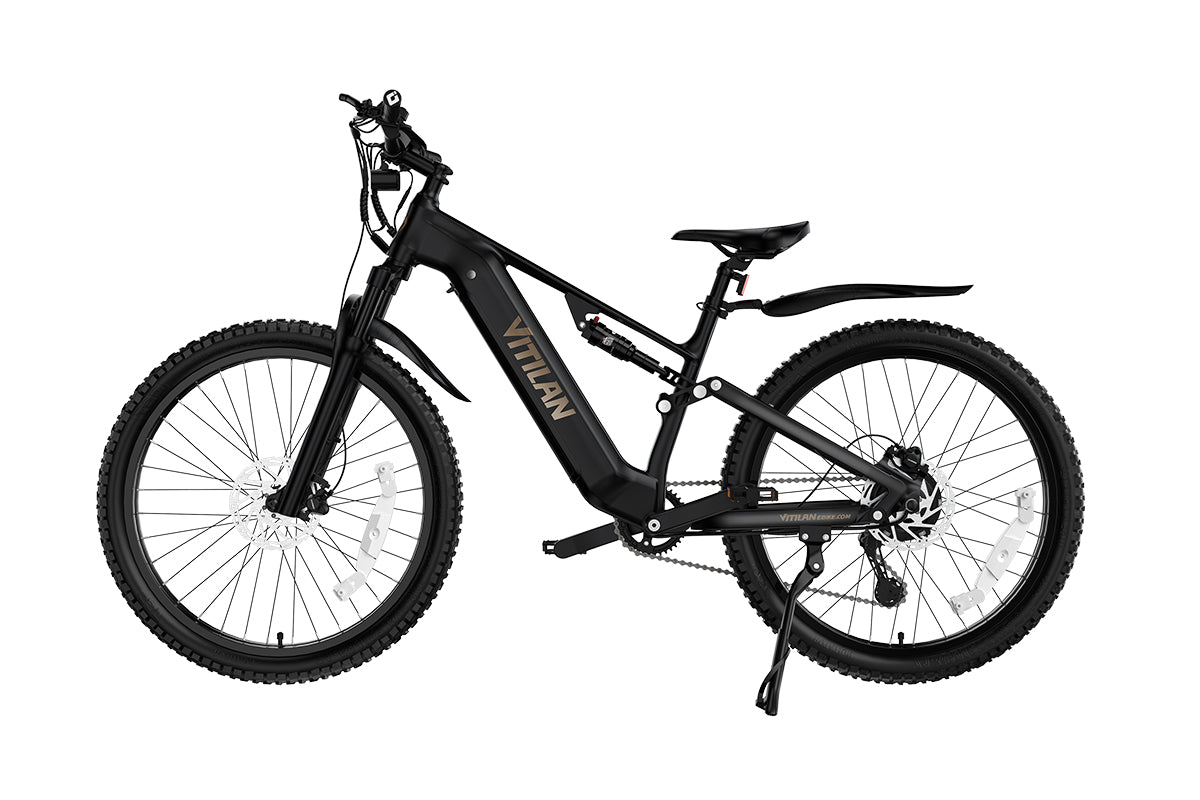

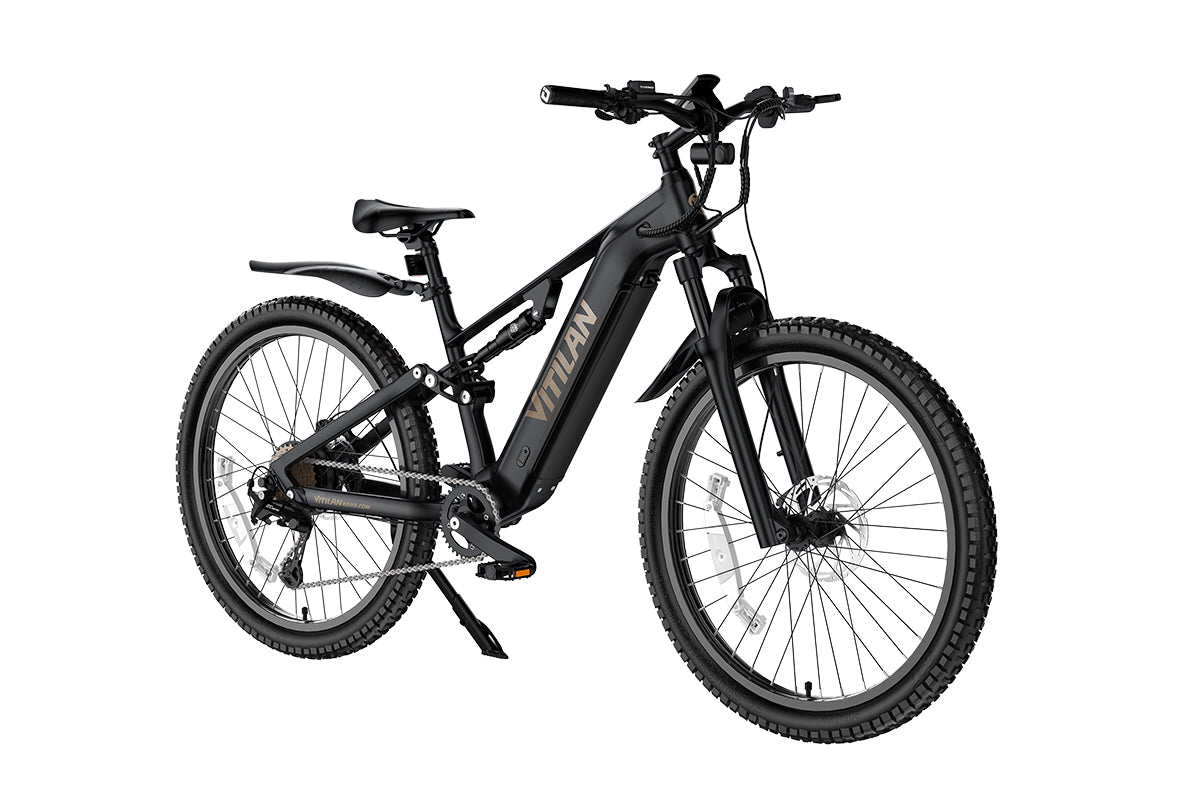

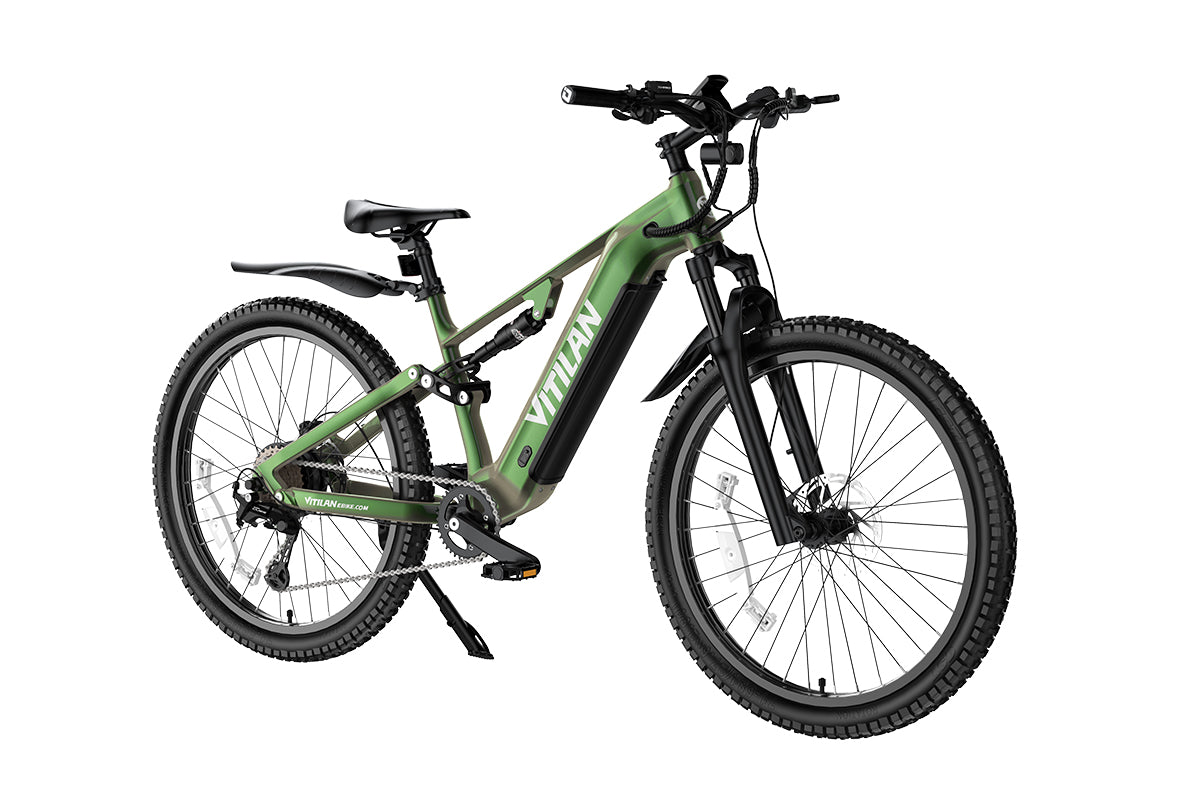

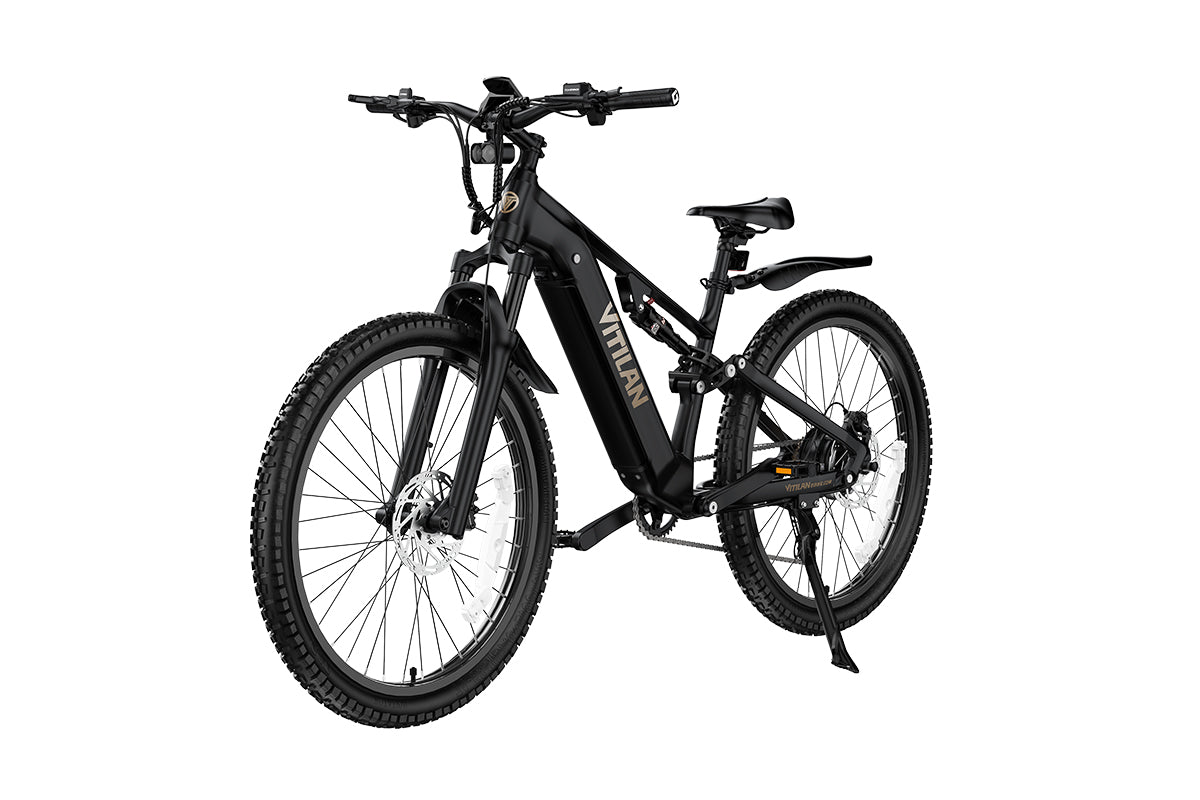

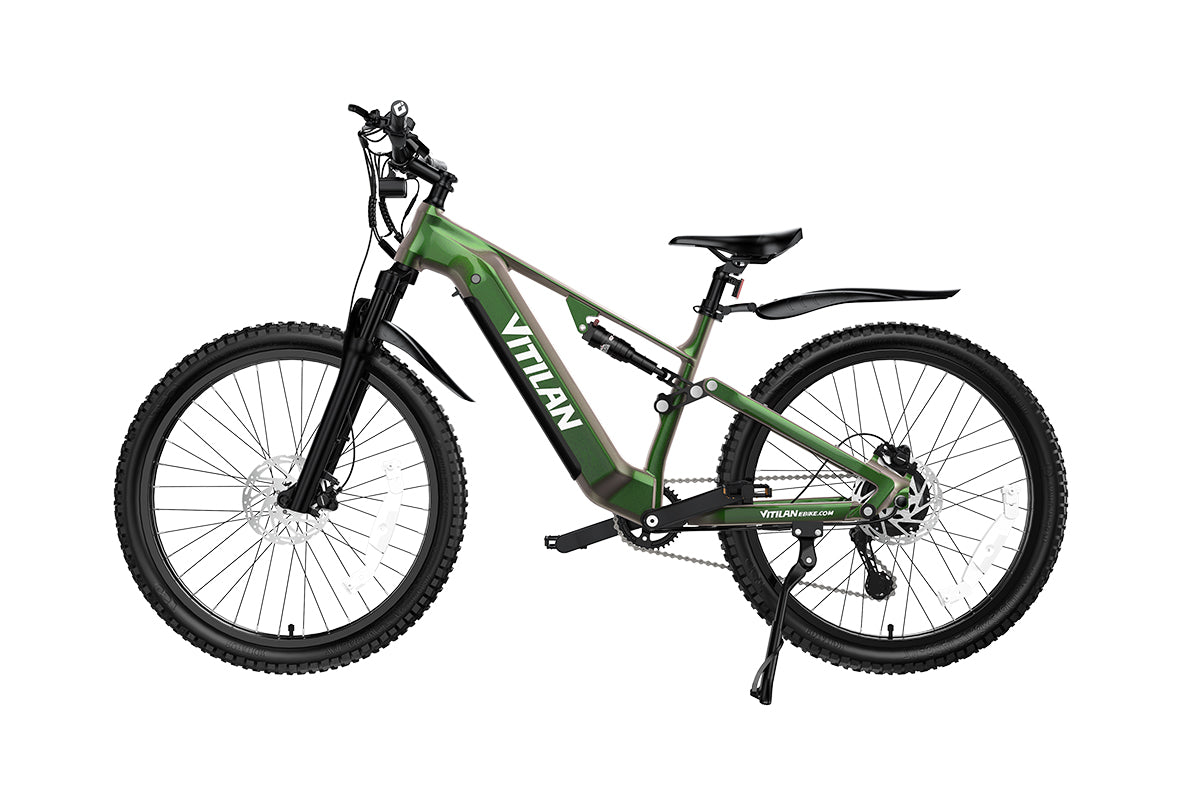

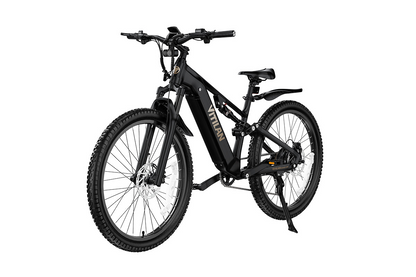

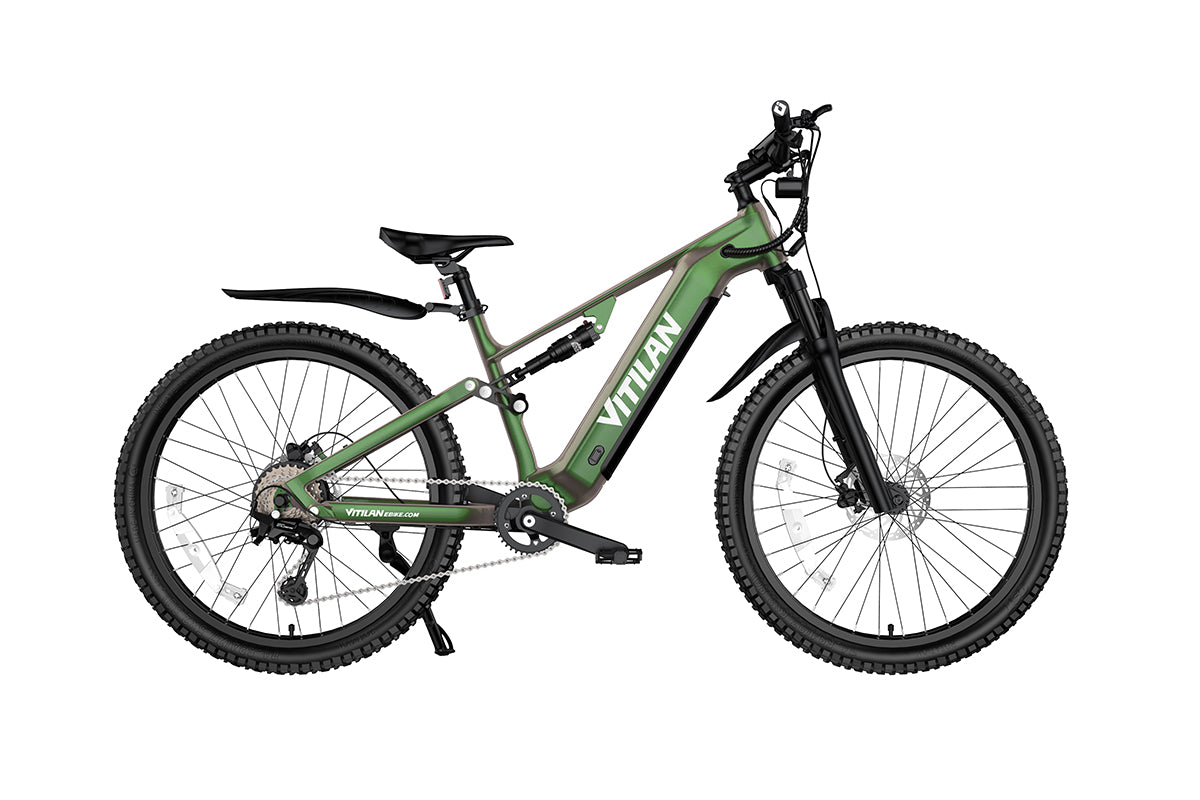

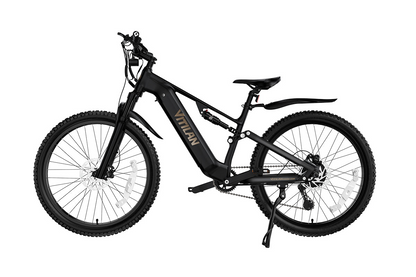

Vitilan M5 Full Suspension All-Terrain Mountain E-bike
- 48V 15Ah LG Battery
- 500W/960W Rated/Peak Motor
- 96-128km Range Per Charge (Estimate)
- 50-80km/h Range
- Torque Sensor
- 9 Speed Gear Shifting System
Torque-assisted Dual-suspension All-Terrain Electric Bike
The Vitilan M5 is a full-suspension electric endurance mountain bike that combines a powerful motor, long-travel suspension, a torque sensor and modern geometry at an affordable price. Its aluminium frame is equipped with a single-leg air suspension fork at the front and a DNM air shock at the rear, ensuring a comfortable ride and confident handling on steep descents, rocky terrain and root-covered trails, whether in bike parks or on natural singletrack.
48V 15Ah LG Lithium-ion Battery
Equipped with a 48V 15Ah LG lithium battery, the M5 delivers enhanced power and an extended riding range of up to 80 km. The removable battery design adds flexibility and convenience, allowing for easy charging and expanded riding options.
500W Upgraded Brushless Gear Hub Motor
With the help of 500W and 60Nm of torque sensing, the high-performance brushless gear hub motor, can elevate the throttle and pedal assist, satisfying high speeds(40km/h) and hill-climbing capabilities. It can also help you conquer the most rugged terrains easily.
Control Your Ride
Shimano's 9-speed drivetrain enables precise gear control. Quiet, swift shifting ensures smooth pedaling for efficient commutes or off-road rides.
Torque Sensor
Instantly adjusts motor output to match your pedaling force and cadence. Delivers smooth, natural, and efficient rides on trails or streets.
LCD Digital Panel
Keep your eyes on the road ahead knowing that all the information you need is right at your fingertips on an easy-to-read LCD screen on the handlebars. Display battery, speed, pedal assist level, range, and distance.
Control Your Ride
Shimano's 9-speed drivetrain enables precise gear control. Quiet, swift shifting ensures smooth pedaling for efficient commutes or off-road rides.
Specification
| Technical Specifications | |
| Motor Hub: |
48V 500W(peak 960W), max torque 60Nm
|
| Battery: |
48V, 15Ah, 720Wh LG Li-ion Battery
|
| Charger: |
54.6V, 2.0A, Operates on 110V-240V AC, 50-60Hz
|
| Display: |
With Fahrenheit temperature display, with Lishui controller Adjustable steering gear shift Adjustable cruise control
|
| Throttle Assist: | thumb shifter |
| Headlight: |
High output integrated LED, IPX6
|
| Pedal Assist Range: | 80km |
| Throttle Range: | 50km |
| Sensor: | torque sensor |
| Charging Time: |
0-80% 4 Hours, 0-100% 6 Hours
|
| Framesets | |
| Frame: |
Aluminum alloy, fully integrated & lockable down tube battery
|
| Brake: |
TEKTRO 180mm front and rear Hydraulic disc brakes
|
| Rims: | Aluminum alloy |
| IP Level: | IPX6 |
| Fork: |
Single-sided shock-absorbing air-pressure front fork. DNM air pressure shock absorber
|
| Tire: |
CST 27.5”x2.8”, puncture-resistant liner
|
| Shift Lever: |
Shimano SL-U4000, 9-Speed
|
| Chain: | Anti-Rust Chain |
| Crankset: | Aluminum alloy, 170mm |
| Seat Post: |
Aluminum alloy, 300mm x 30.4mm
|
| Pedals: |
full aluminum mountain bike pedals (with pegs)
|
| Weight & Speed | |
| Package Dimensions: | 61.8''*14.1''*33.8'' |
| Max Load: | 330lbs |
| Package Weight: | 96.5 LBS |
| M5 Weight: | 84.5 LBS |
| Max Speed: | 40km/h |
Size
| A. Total Length: | 75.6" |
| B. Handlebar Height: | 42.5" |
| C. Minimum Seat Height: | 34.3" |
| D. Maximum Seat Height: | 40.2" |
| E. Top tube length: | 23.6" |
| F. Frame to Ground Height: | 16.9" |
| G. Handlebar length: | 28.0" |
| H. Head tube length: | 27'' |
| I. Wheelbase: | 52.4" |
| Recommended Height: | 5'5''-6'7'' |
More Reasons to Love It
Air Suspension Front Fork
The air suspension front fork effectively absorbs bumps and shocks on rugged or uneven routes, significantly reducing vibration and rider fatigue.
Integrated Headlight & Taillights
The bright 48V headlight and rear LED lights provide clear illumination for safer riding both day and night. The integrated rear turn signals enhance visibility and act as effective safety warnings when riding in traffic or crowded areas.
CST Puncture-Resistant Tyres
The 27.5×2.8-inch puncture-resistant tyres help you navigate both flat and rugged terrain with ease. The non-slip, wear-resistant CST tyres effortlessly tackle sandy paths, dirt tracks, grassy areas, mountain trails, footpaths and hilly terrain.
Soft Bike Seat
Vitilan bike seats are ergonomically designed to fit your body. They are shaped to match your riding position and will free you from strain and fatigue caused by long rides.
DNM Center Shock Absorber
The DNM 50mm mid shock absorbs rear-wheel impacts with precision. Delivers a smoother ride over rocky or uneven trails.
