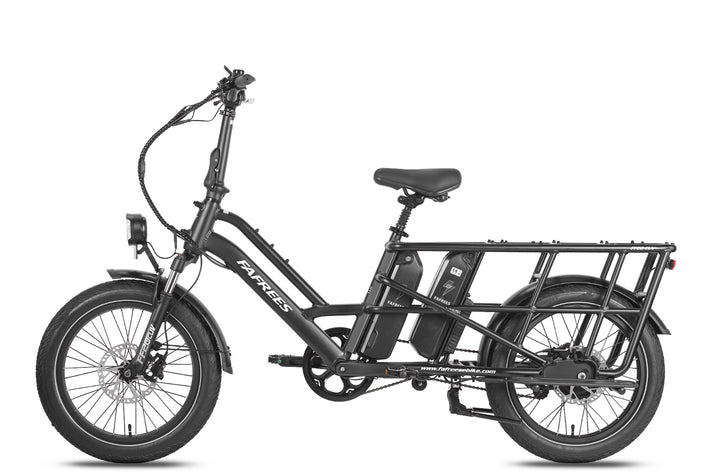

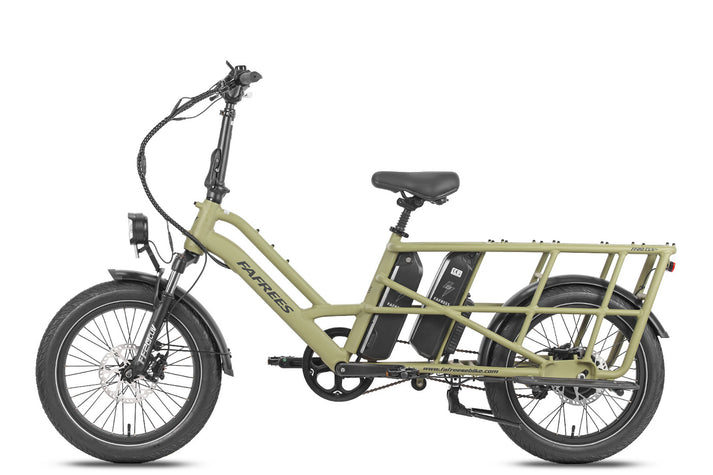

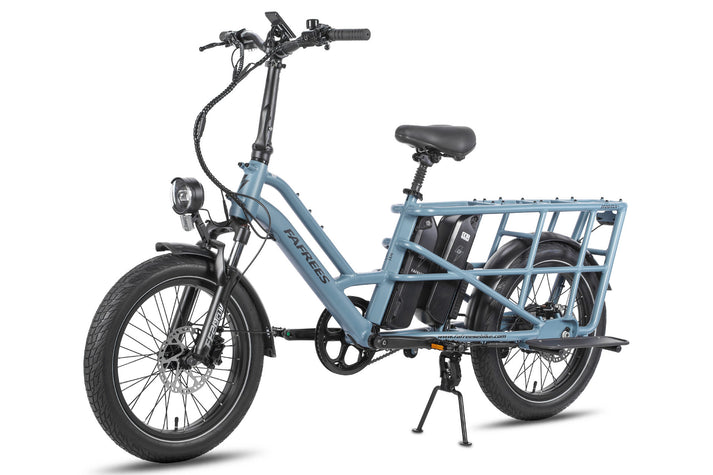

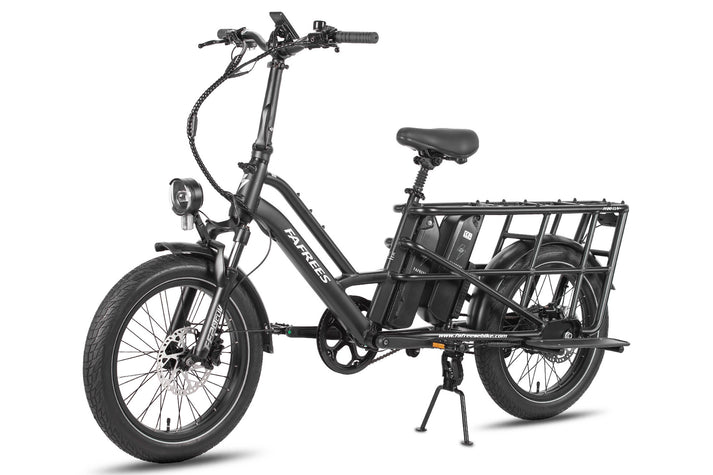

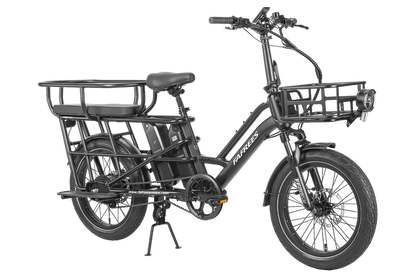

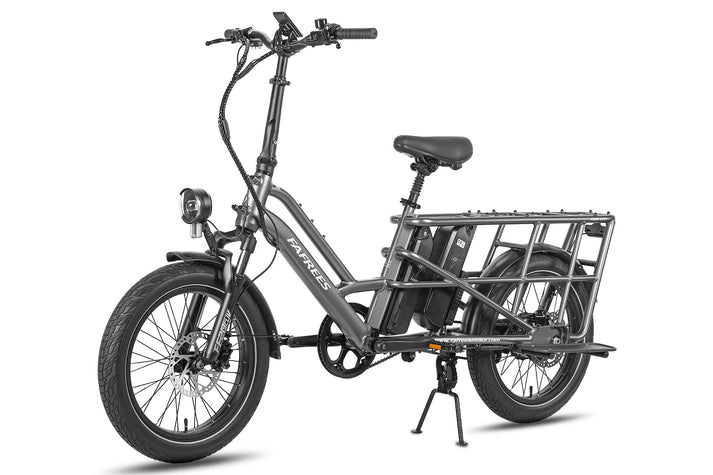

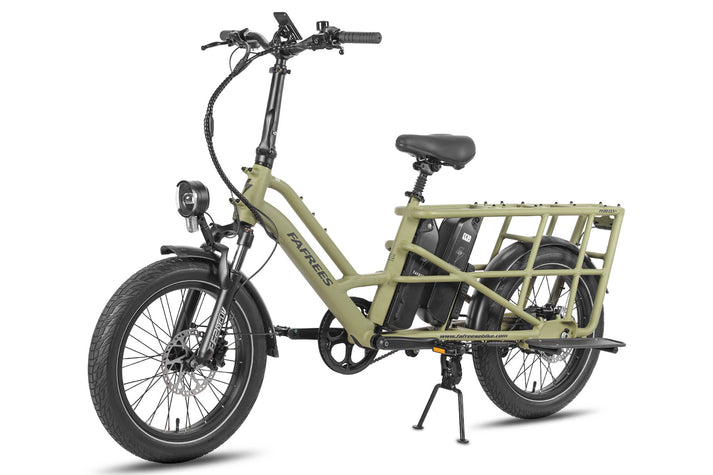

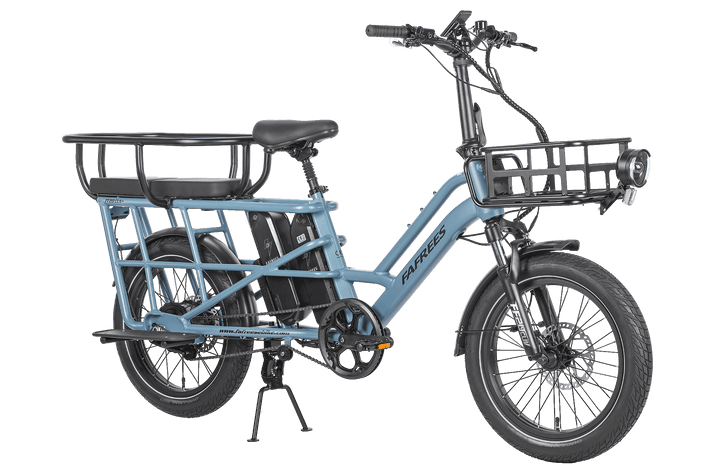

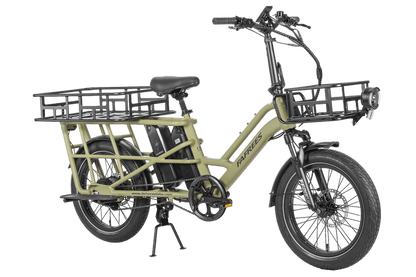

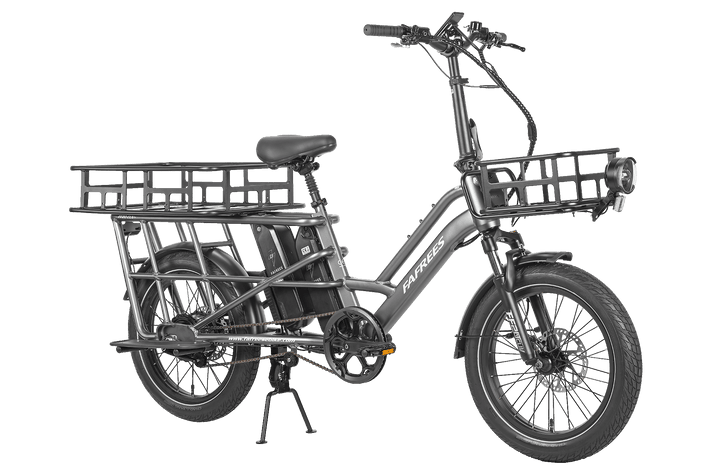

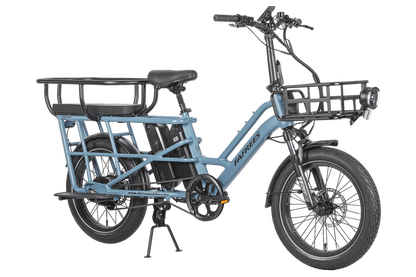

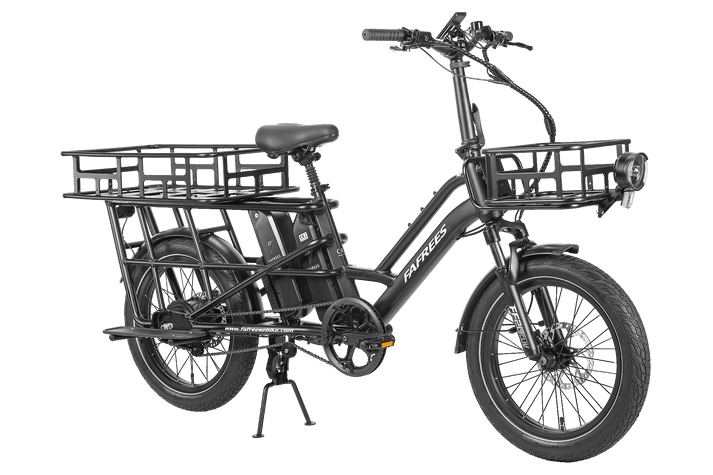

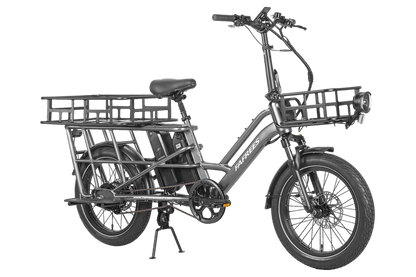

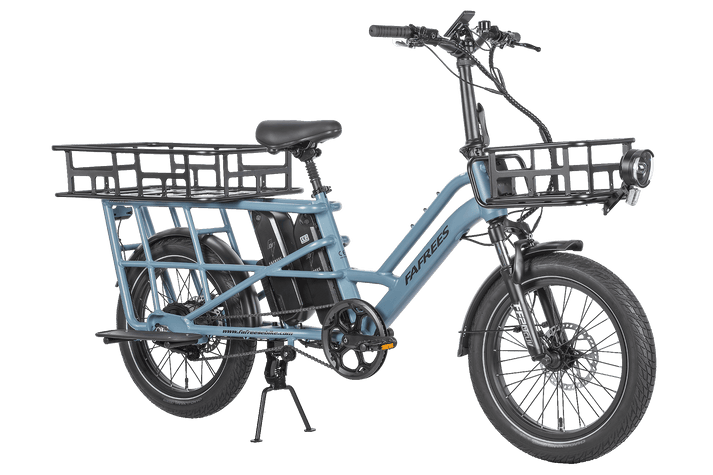

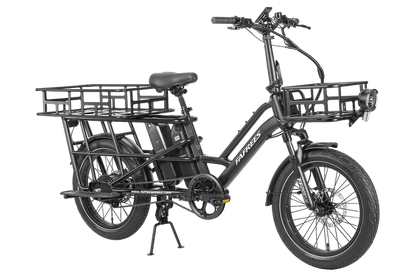

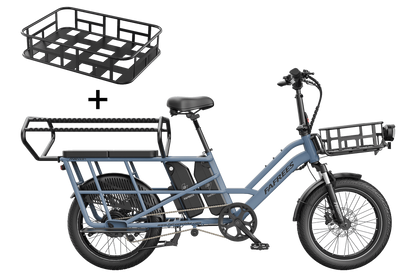

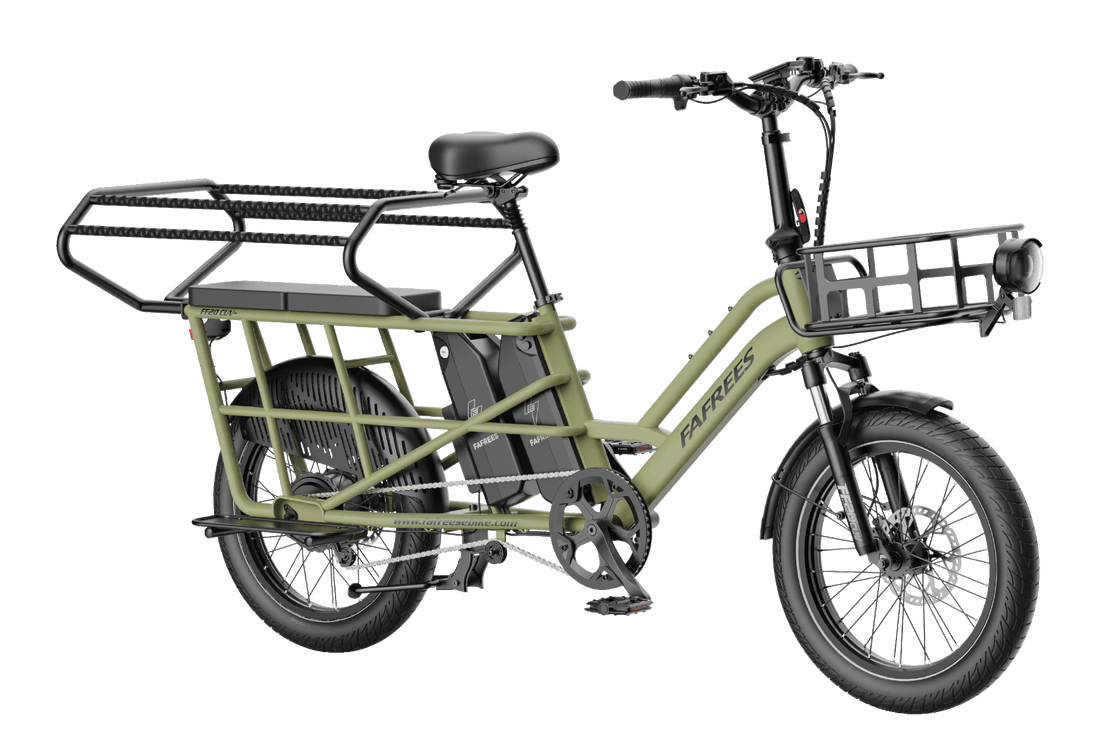

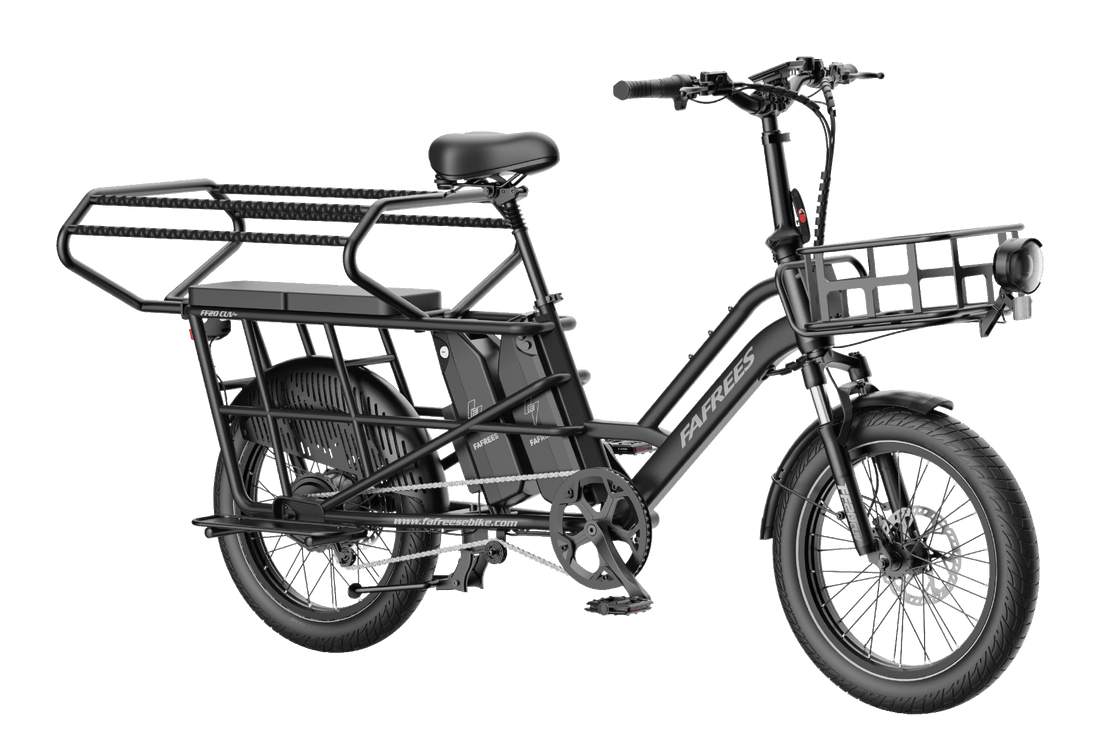

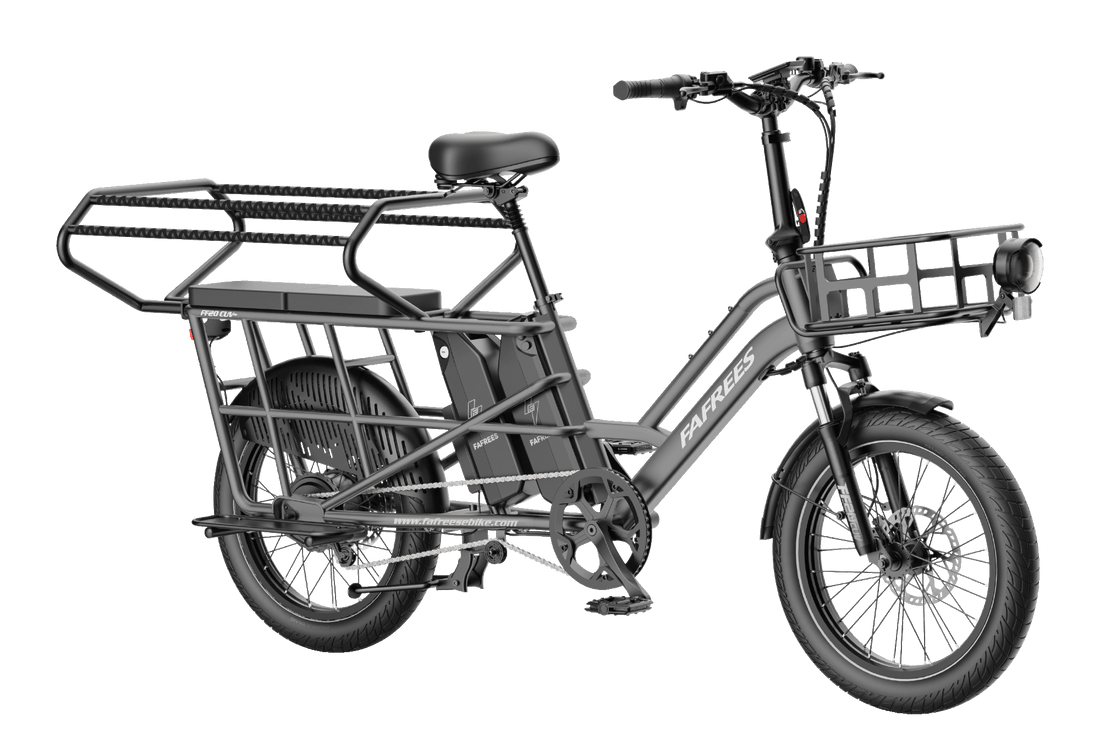

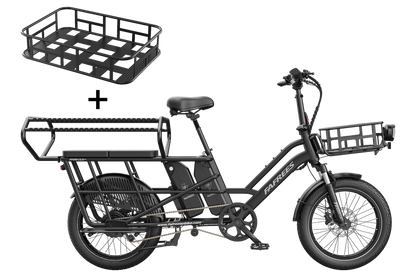

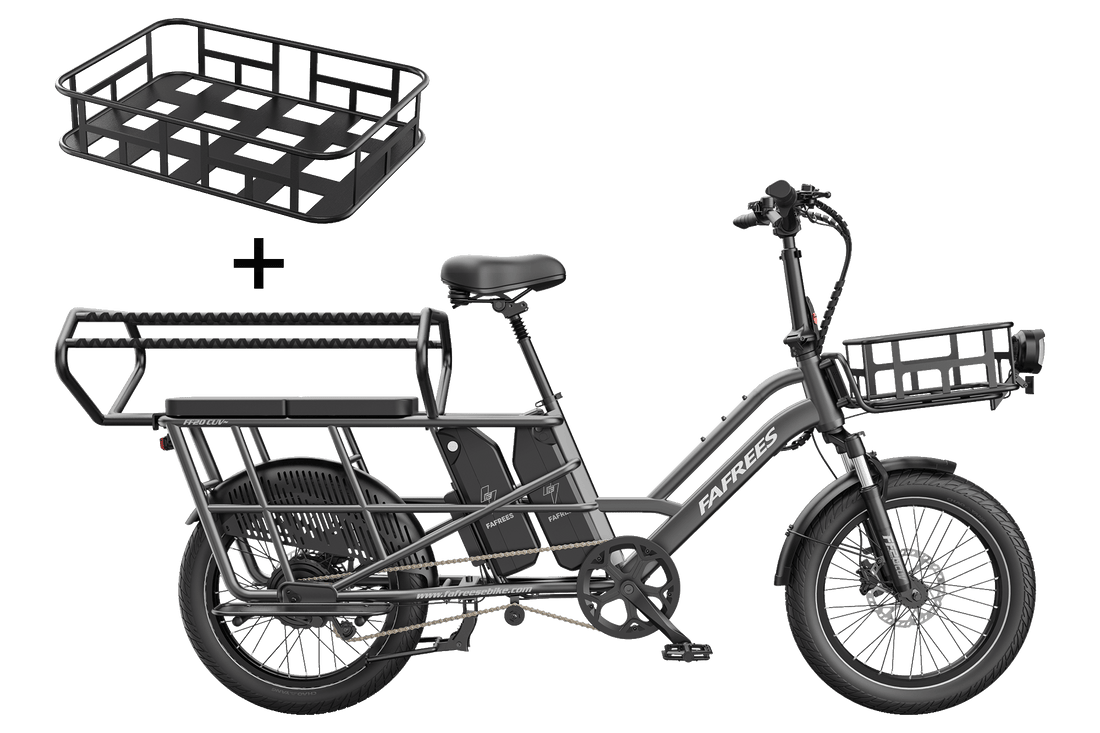

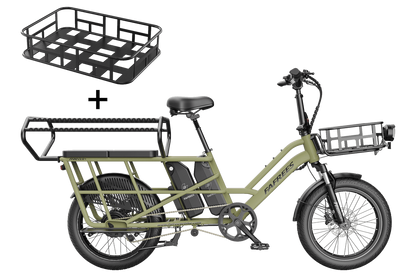

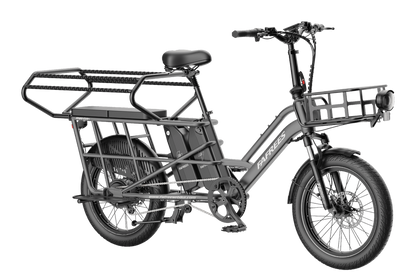

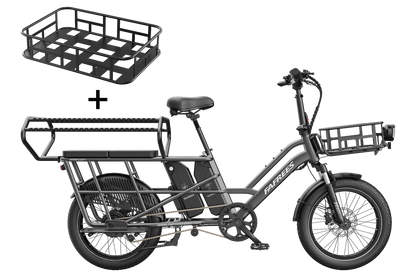

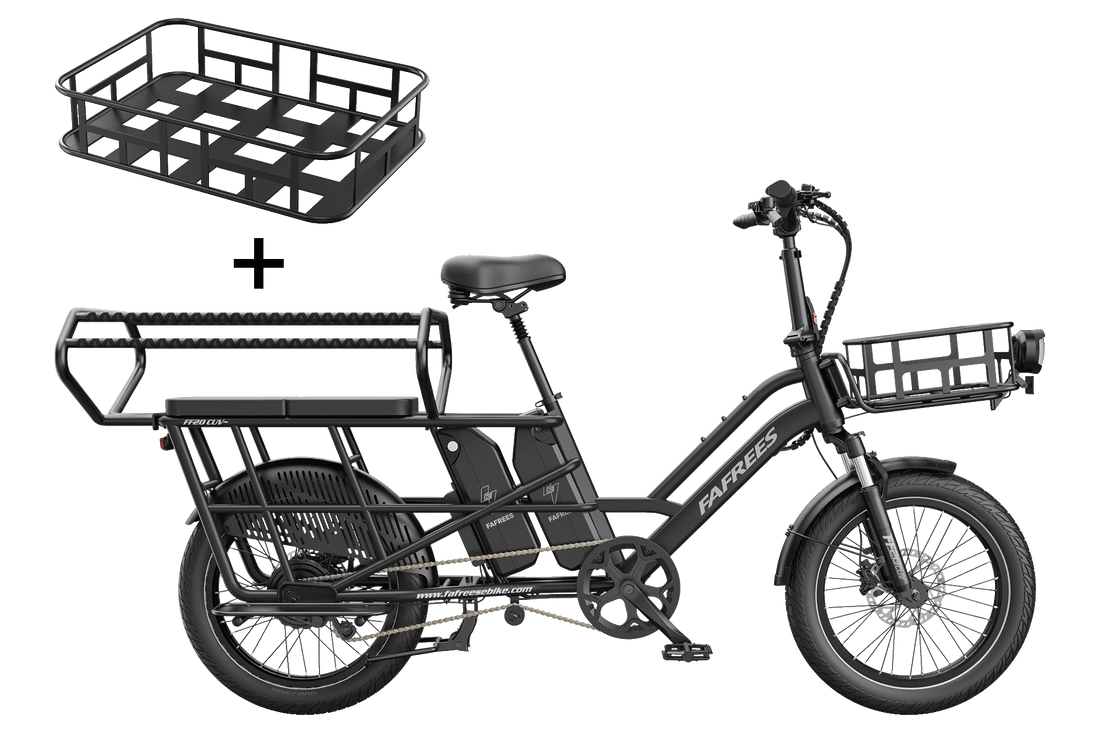

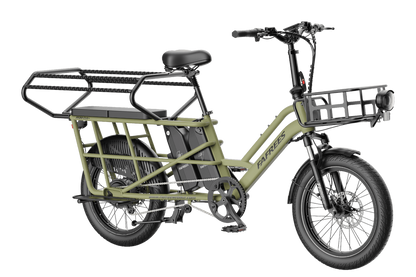

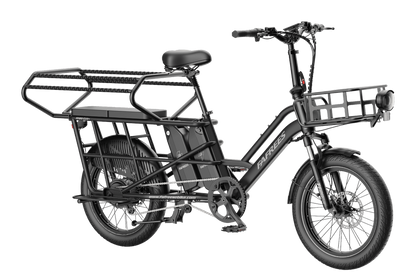

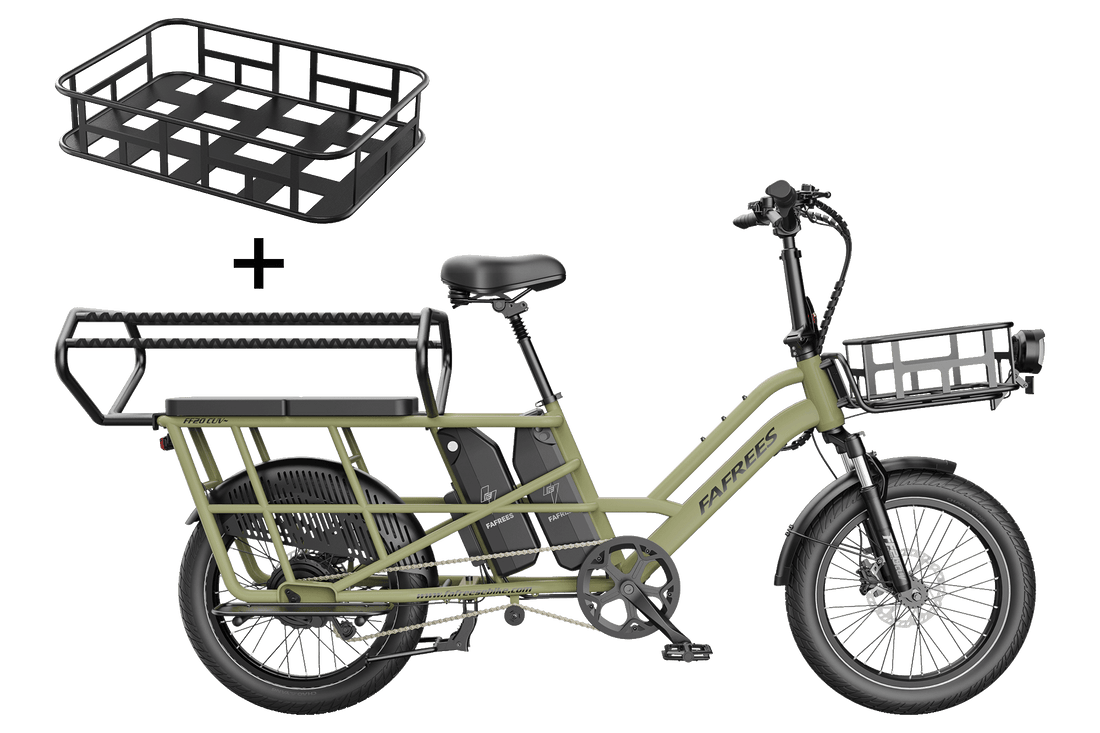

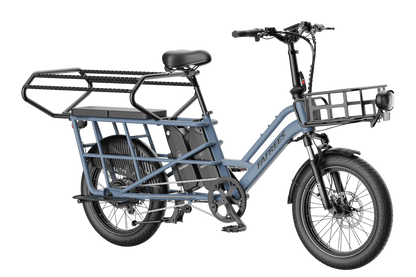

Fafrees FF20 CUV

Fafrees FF20 CUV

€1.769,00
€2.099,00 €1.769,00
Sale Sold out
Shipping calculated at checkout.
Color
Upgrade
Battery size
  • Next Day Dispatch
  • 30-Day Returns
  • 365 Days Warranty

🚚 Free Shipping Across Europe

Why Buy From Us?

We source all products through authorized channels, ensuring every bike is genuine and backed by reliable manufacturer support. All orders are shipped from our EU warehouse, with no unexpected customs or import charges upon delivery.

Our commitment goes beyond simply delivering your bike. From pre-purchase advice to long-term after-sales support, our team is here to help you enjoy a worry-free riding experience.

Warranty & After-Sales Support

We provide warranty support for manufacturing defects and non-user-related issues in accordance with the manufacturer's warranty policy.

If you ever need assistance, our after-sales team is available to help with troubleshooting, video guidance, and replacement part recommendations. We also work with trusted local repair partners to assist with servicing and repairs when required.

Even after your warranty has expired, we're still here to help. We can assist with technical support and provide access to replacement parts and repair services, helping you keep your bike in excellent condition for years to come.

Why Buy From Us?

  • Warranty: 1 Year Warranty with spare parts available.
  • Bike to Work / Cycle to Work Scheme available
  • Assembly Service: Professional bike assembly and home delivery (€90 extra).
  • 🇮🇪 Local Support: Ireland-based customer and after-sales support.

Fafrees FF20 CUV Cargo

  • 250W Brushless Motor
  • 100-140km Mileage
  • 48V/12Ah*2 Lithium Battery
  • 25km/h Default Speed
  • CST 20*3.0 Fat Tires
  • 200kg Payload

Versatile and family-ready, the FF20 CUV features a 250W pedal-assist motor, dual batteries for up to 140 km range, and a modular longtail frame with 200 kg load capacity. Perfect for school runs, daily errands, and weekend adventures.

Specification

GENERAL
Range 100-140km
Speed Max 25km/h
Pedal Assist 3 levels
Folding Parts Handlebar
Bike Weight 38kg
Weight Capacity 200kg
Rider Height 160-200cm
Certifications
EN15194 + CE + E-Mark
Water Resistance IPX5
ELECTRONIC
Motor
Rear drive, 48V, 250W(sustained) 750W(peak)
Motor Torque 75Nm
Battery
48V 24Ah, 1152Wh, removable lithium-ion
Battery Weight 3.1+3.1kg
Charger
48V Output: 54.6V/ 3A
Charging Time
9 hours from 0% to 100%
Display
3.5" IPS color LCD, backlit, IP65
Sensor
Torque sensor
Lights
Front and rear lights (with brake lights)
COMPONENTS
Frame
6061 Aluminum Alloy
Handlebars
Aluminum 31.8mm, 660mm
Fork
Suspension fork, 60mm travel, with lockout
Brakes
Hydraulic disc brakes
Brake Rotor 180mm 6-bolt
Derailleur n/a
Shifter n/a
Wheels
20in, 13g, 36hole, double wall Aluminum
Tires
Chaoyang 20x3.0, 30tpi, puncture resistant
Tubes
Butyl rubber, schrader valve
Chain 152L
Chain Ring 52T
Cassette
Single-Speed, 16T
Crankset 170mm
Pedals 9/16" pedals
Saddle
Flip-up foam saddle
Seatpost
Suspension Seatpost, Ø 27.2mm, 350mm Length. 15mm travel
Kickstand Included
Rear Rack Included
Fenders Included

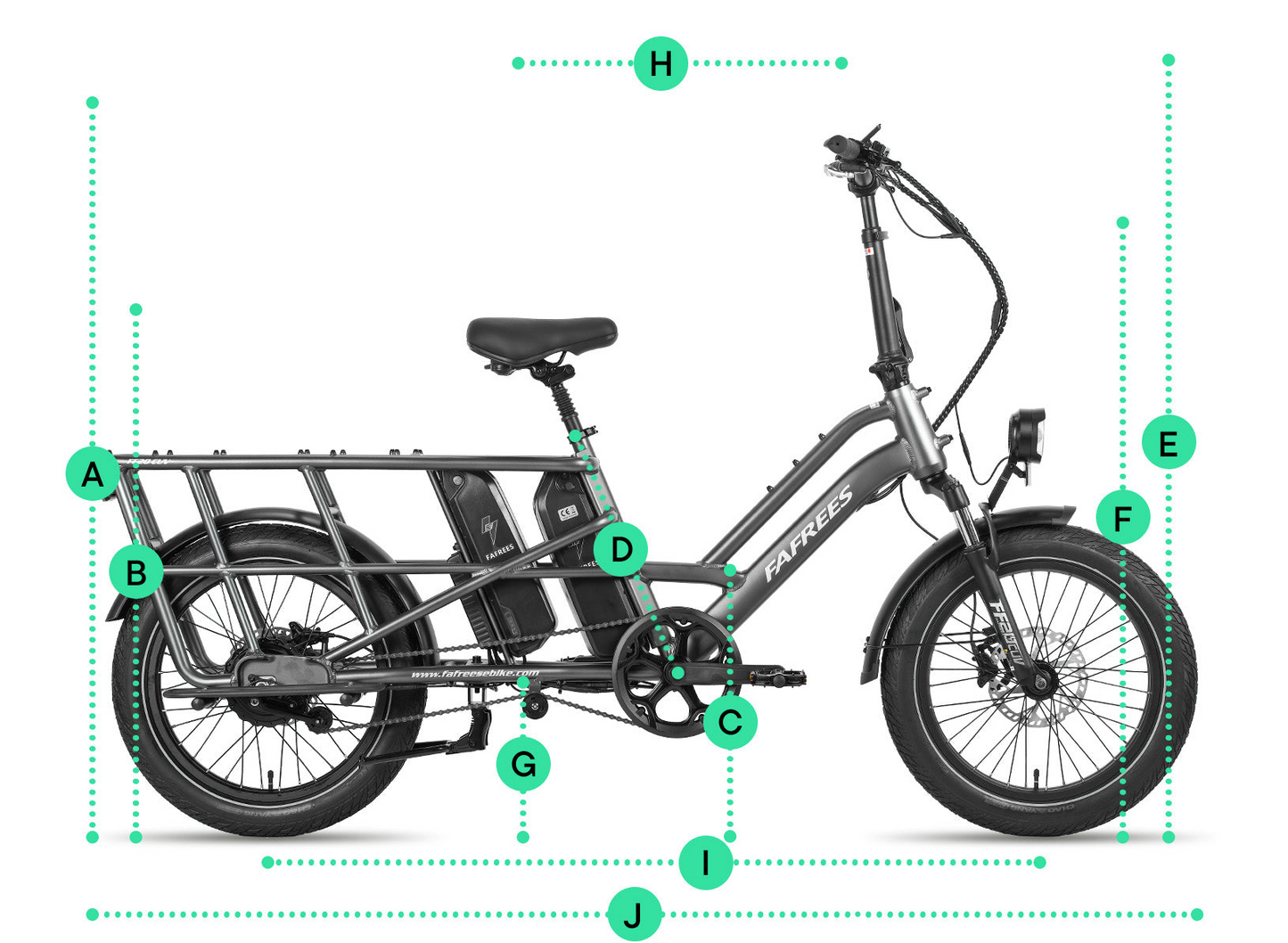

Size

A: Max. Seat Height 102 CM
B: Min. Seat Height 85 CM
C: Standover Height 48 CM
D: Frame Size 45 CM
E: Max. Handlebar Height 125 CM
F: Min. Handlebar Height 114 CM
G: Bottom Bracket Height 27 CM
H: Top Tube Length 60 CM
I: Wheelbase Length 135 CM
J: Total Length 190 CM
Bike Width 67 CM
Folded Size
190*50*85 CM



What’s In The Box?

PACKAGE INCLUDED
1 x FF20 CUV ebike
1 x Charger
1 x User manual
1 x Gift box (Includes 2* brake pads, 1* inner tube, 2* valve caps, 1* tool kit, and 1* keychain)
*To ensure timely delivery and consistent product quality, Fafrees reserves the right to replace components with alternatives of equal or higher quality when necessary. This will not affect the product’s intended performance or safety.



More Reasons to Love It

Hydraulic Disc Brakes: Front and rear hydraulic brakes deliver consistent, powerful stopping in all weather and under heavy load.

Color LCD Display:Bright, easy-to-read screen shows speed, battery, and assist level—making every ride simple and informed.

20×3.0" Fat Tires:Grip confidently on cobblestones, gravel, or sand with wide tires that cushion bumps and boost traction.

Folding Handlebar: Easily store your bike in tight spaces with a rust-resistant aluminum frame and foldable handlebar.

200 kg Max Load: Safely carry up to 200 kg, the rider (150 kg), front basket (20 kg), and rear rack (100 kg) — ideal for kids or cargo.

Fully Equipped for the Road: From lights and fenders to footrests and a strong kickstand—everything you need for daily family rides.
