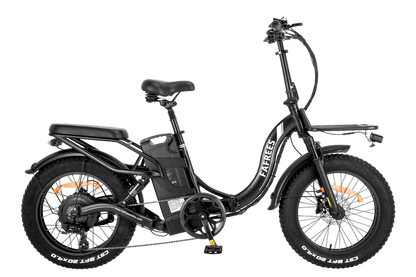

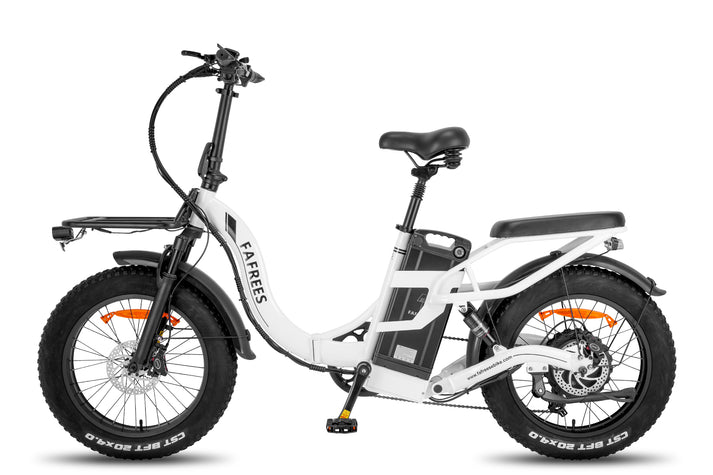

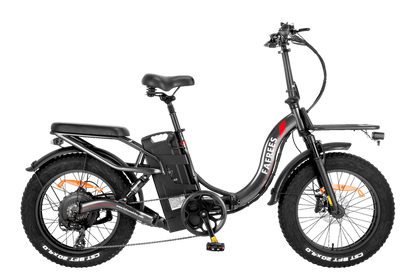

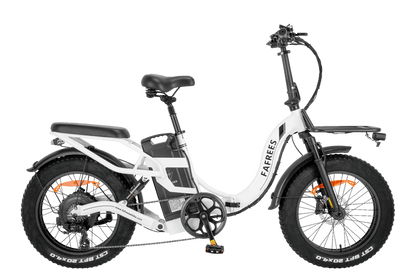

Fafrees F20 X-Max E-Bike
Fafrees F20 X-Max E-Bike
Couldn't load pickup availability
- Next Day Dispatch
- 30-Day Returns
- 365 Days Warranty
Authorized Seller
Authorized Seller
We are an authorized seller of Fafrees. All products are shipped from our EU warehouse, with all customs and import duties already paid, so there are no hidden fees on delivery. Every order is supported by our local service centre, and even after the warranty period ends, we’ll always do our best to help with any issues you may encounter.
Responsive Customer Support
Responsive Customer Support
Need help? Our live chat is available from 9:00 AM to 5:00 PM, and our email support team is available 24/7. We’ll respond within 24 hours and support you every step of the way.
Trusted After-Sales Support
Trusted After-Sales Support
Warranty & Repairs:
For non-user-related issues, we provide the same warranty support as the brand. Even if your bike is out of warranty, you can still purchase replacement parts from us at cost price for continued peace of mind.

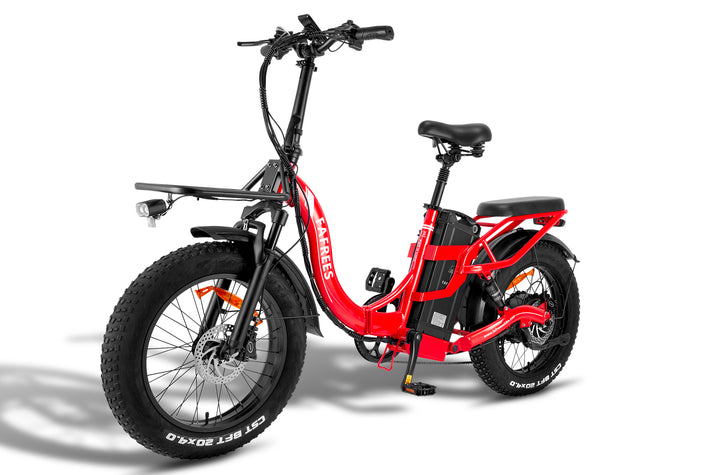

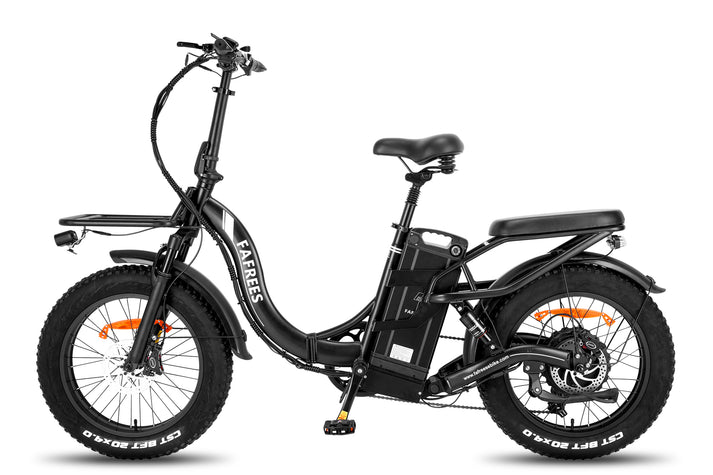

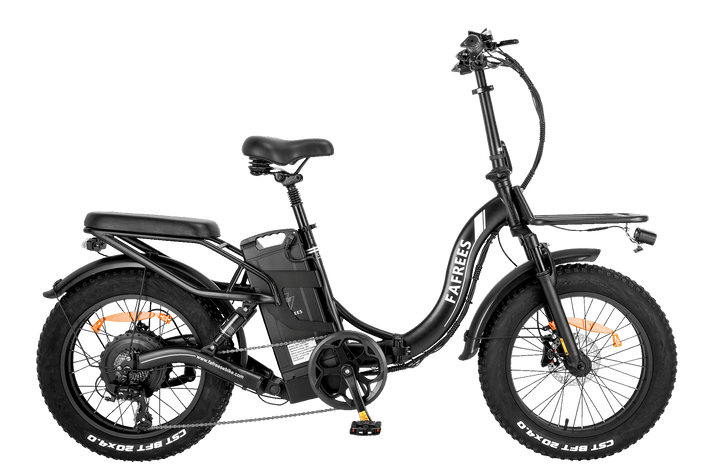

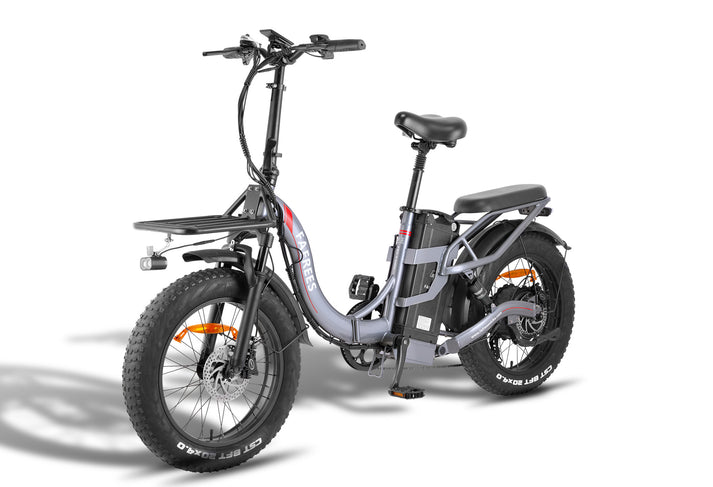

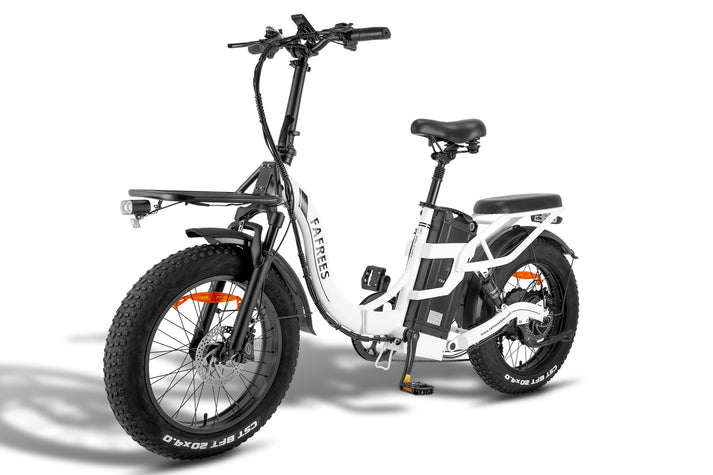

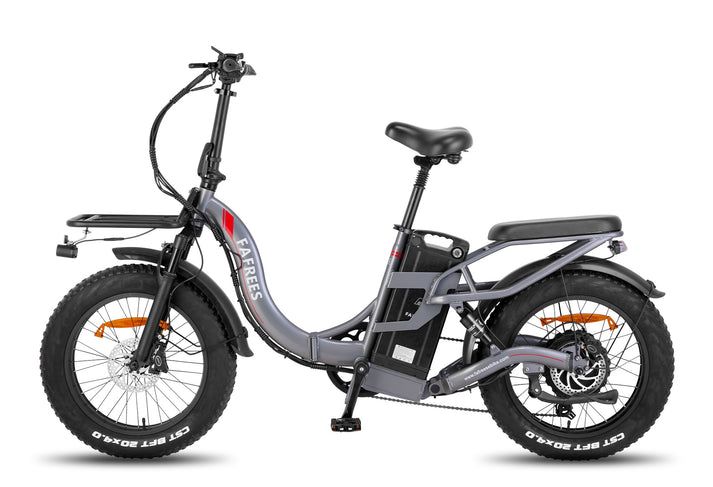

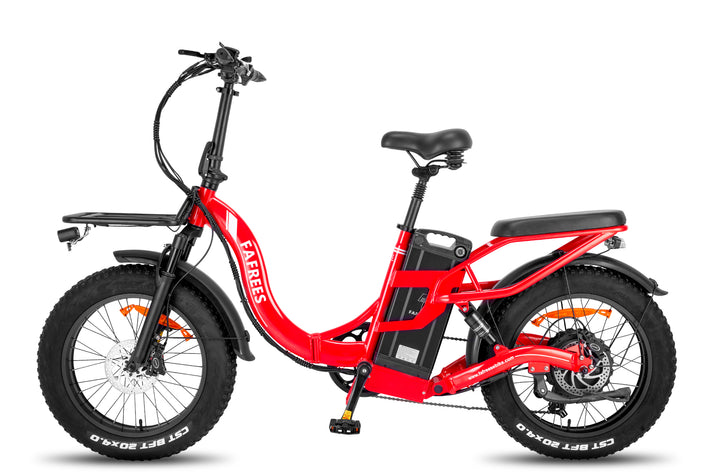

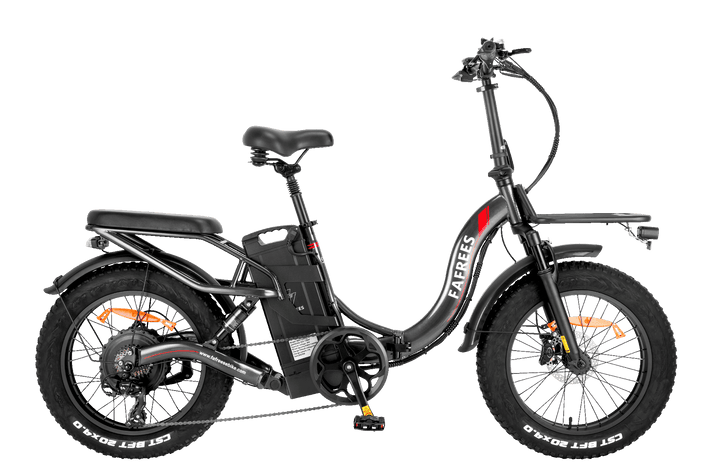

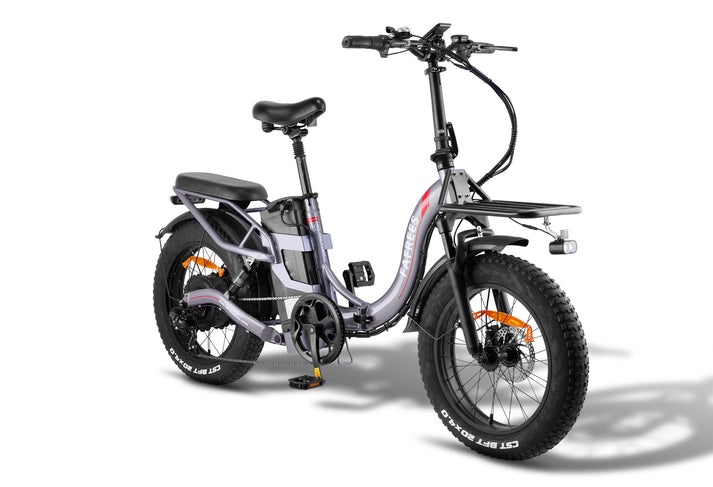

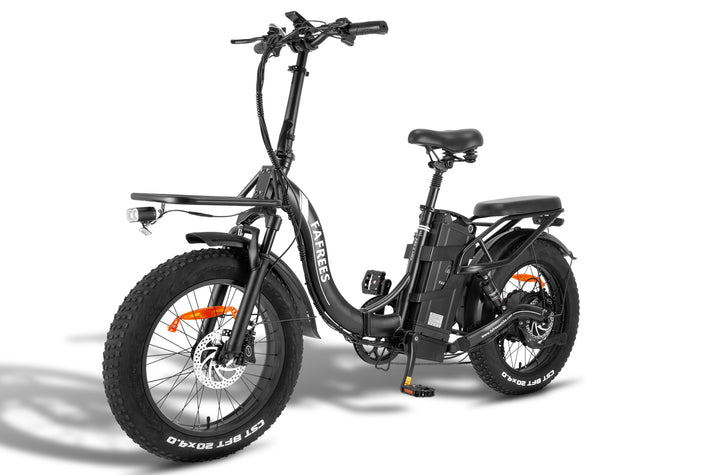

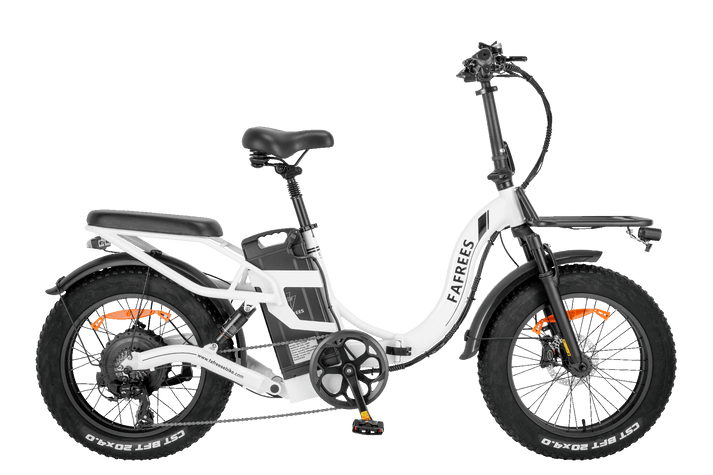

Fafrees F20 X-Max E-Bike
Power your day with a foldable fat-tire e-bike built for distance, comfort, and utility.
30Ah Samsung Battery
Packed with 21700 Samsung cells (1440Wh), it delivers up to 140km range per charge.
High-Torque 750W Motor
Feel the power with a peak 980W output and strong 65Nm torque for confident, controlled riding.
Hydraulic Braking
Front and rear hydraulic brakes with 160mm rotors provide strong grip and fast response.
Display with USB Port
Easily view speed, range, and gear with the large LCD screen—plus, charge your phone on the go.
Triple Suspension
A complete suspension setup—front, rear, and seatpost—smooths out every bump for long-time riding.
Specification
| GENERAL | |
| Range | 120-140km |
| Speed | Max 25km/h |
| Pedal Assist | 3 levels |
| Folding Parts |
Handlebar, Frame, Pedals
|
| Bike Weight | 49kg |
| Weight Capacity | 150kg |
| Rider Height | 165-210cm |
| Certifications |
EN15194 + CE + E-Mark
|
| Water Resistance | IPX4 |
| ELECTRONIC | |
| Motor |
Rear drive, 48V, 750W(sustained) 980W(peak)
|
| Motor Torque | 65Nm |
| Battery |
48V 30Ah, 1440Wh, removable lithium-ion, Samsung cells
|
| Battery Weight | 7.5kg |
| Charger |
48V Output: 54.6V/ 3A
|
| Charging Time |
9 hours from 0% to 100%
|
| Display |
3.5" IPS color LCD, USB Port, backlit, IP65
|
| Sensor |
Cadence sensor
|
| Lights |
Front and rear lights (with turn signals)
|
| COMPONENTS | |
| Frame |
6061 Aluminum Alloy
|
| Handlebars |
Aluminum 25.4mm, 620mm
|
| Fork |
Suspension fork, 50mm travel, without lockout
|
| Brakes |
Hydraulic disc brakes
|
| Brake Rotor | 160mm 6-bolt |
| Derailleur |
Rear, Shimano 7-Speed
|
| Shifter |
Shimano 7 Speed Trigger
|
| Wheels |
20in, 13g, 36hole, double wall Aluminum
|
| Tires |
CST 20*4.0, 60tpi
|
| Tubes |
Butyl rubber, schrader valve
|
| Chain | 138L |
| Chain Ring | 52T |
| Cassette |
Shimano 7-Speed 14-28T
|
| Crankset | 152mm |
| Pedals |
9/16" Foldable pedals
|
| Saddle |
Flip-up foam saddle
|
| Seatpost |
Suspension Seatpost, Ø 31.8mm, 400mm Length. 15mm travel
|
| Kickstand | Included |
| Rear Rack | Included |
| Fenders | Included |
Size
| A: Max. Seat Height | 106 CM |
| B: Min. Seat Height | 86 CM |
| C: Standover Height | 38 CM |
| D: Frame Size | 43 CM |
| E: Max. Handlebar Height | 132 CM |
| F: Min. Handlebar Height | 116 CM |
| G: Bottom Bracket Height | 17 CM |
| H: Top Tube Length | 64 CM |
| I: Wheelbase Length | 130 CM |
| J: Total Length | 186 CM |
| Bike Width | 63 CM |
| Folded Size | 105*45*76 CM |
More Reasons to Love It
CST 20×4.0" Fat Tires: Wide 4.0" tires offer extra grip and stability on snow, sand, mud, gravel, and city roads alike.

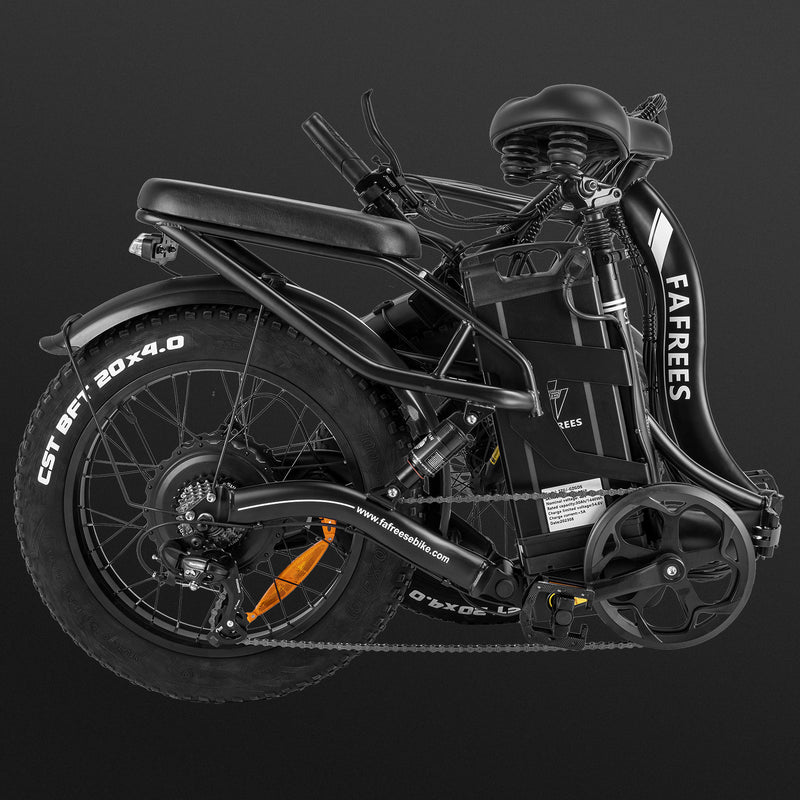

Triple Folding Design: Folds at the frame, handlebars, and pedals—making it ultra-compact, easy to store, and perfect for transport on any trip.

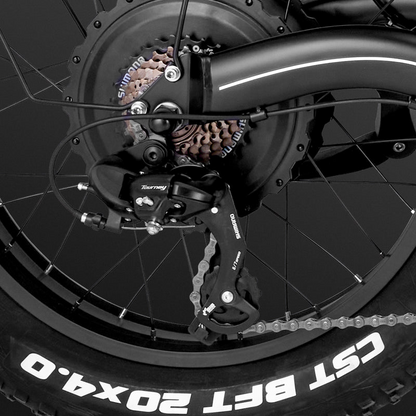

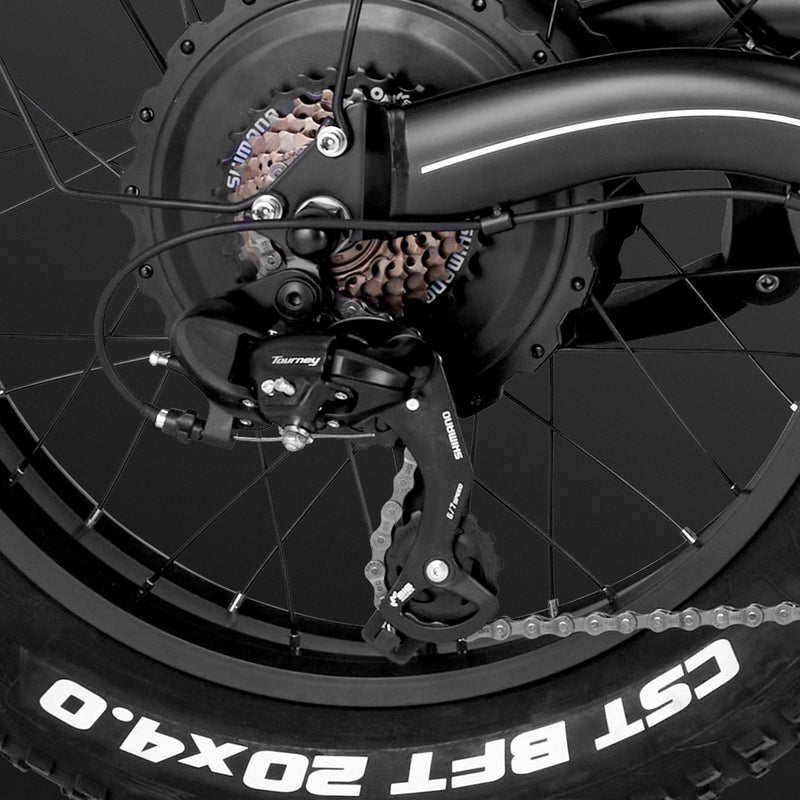

Shimano 7-Speed Gear Shift: Tackle hills, flats, or stop-and-go traffic with smooth shifting. Smart gear use can extend battery life by up to 15%.

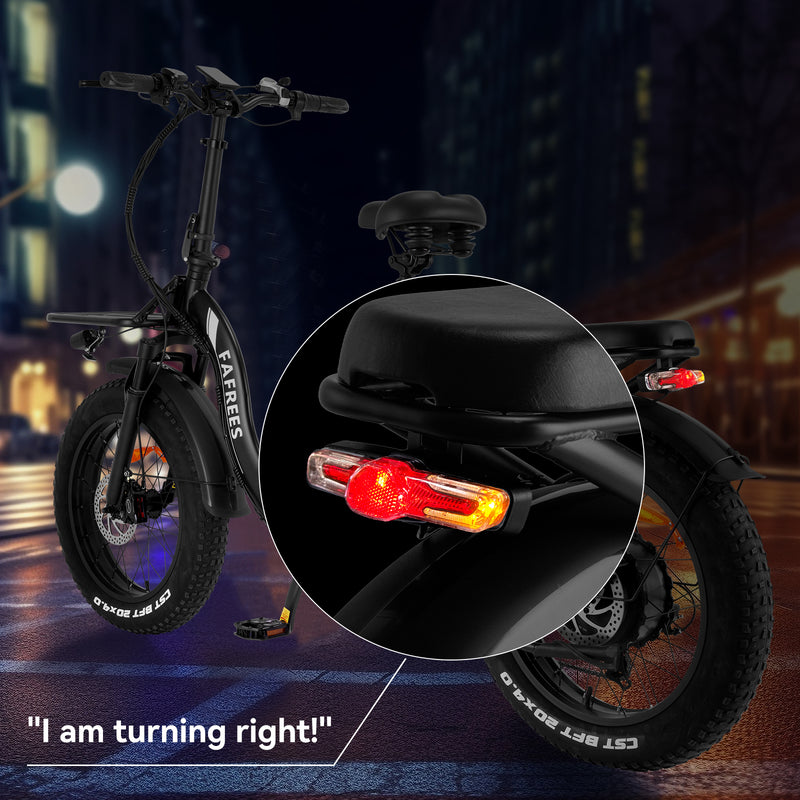

Lights with Turn Signals: Bright front and rear lights with turn signals keep you visible and predictable.

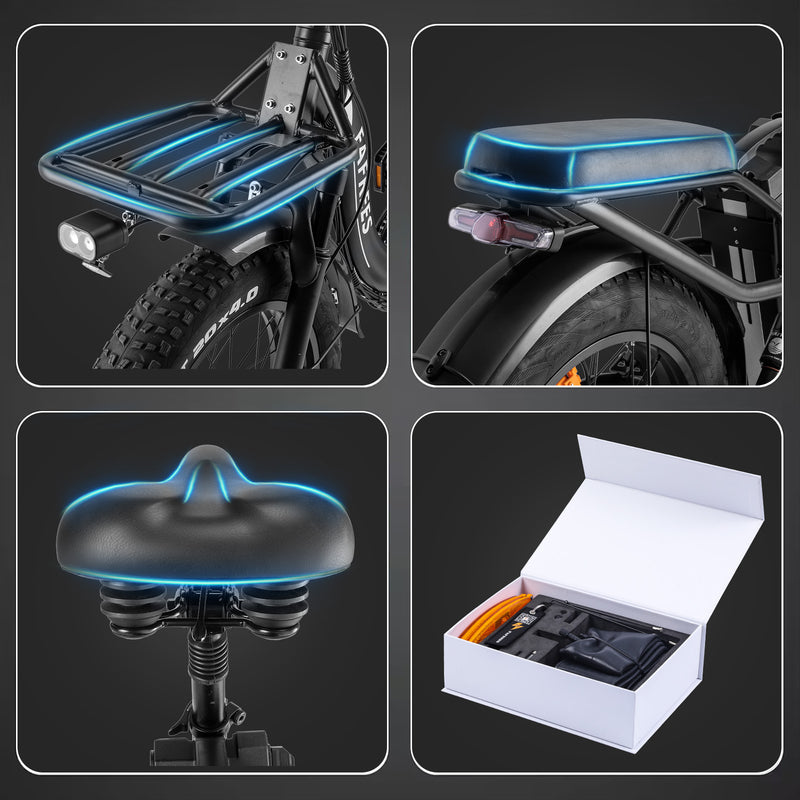

Front & Rear Cargo Racks: Built-in racks let you carry groceries, gear, or supplies with ease—ideal for commuting or weekend adventures.
